Microcorruption: Hanoi

Summary

This is a write-up of my solution to the Microcorruption CTF challenge "Hanoi" (LOCKIT PRO r b.01).

Let's jump right in...

4438 <main>
4438:  b012 2045      call	#0x4520 <login>
443c:  0f43           clr	r15

main() this time only makes a call to a function called login(). Let's dissect login():

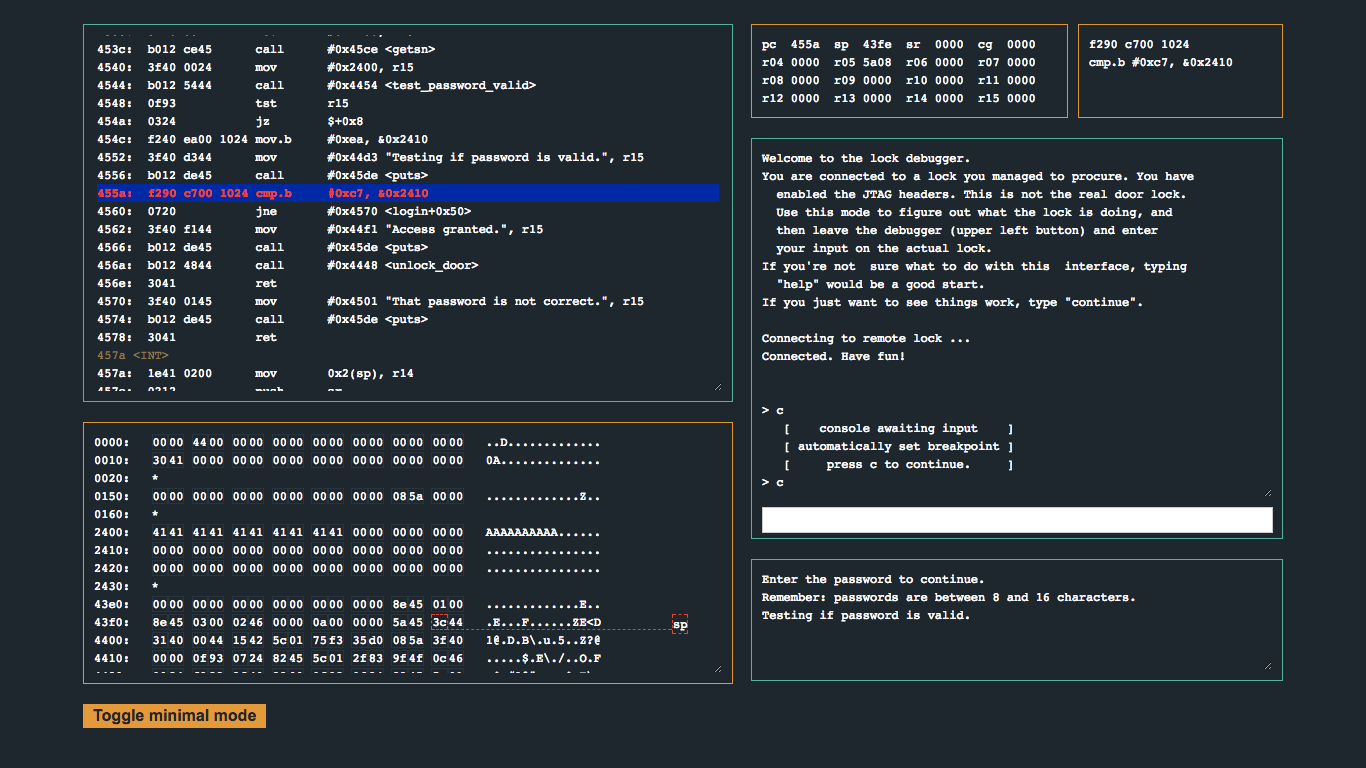

Straight away, the instruction at 0x455a catches my eye, cmp.b #0xc7, &0x2410. Ultimately, this instruction will compare the byte located at memory address 0x2410 with the value 0xc7, and if they are equal, the door will unlock. Let's set a breakpoint on the instruction and inspect the memory region around 0x2410 when execution pauses.

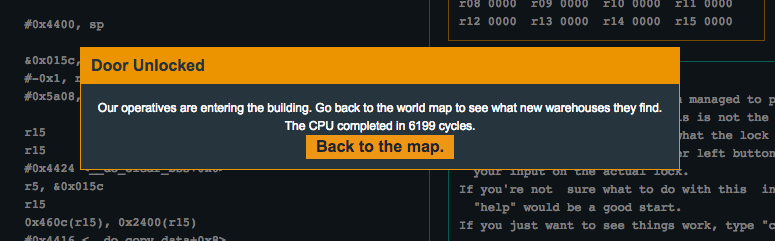

When being prompted for the password, I used AAAAAAAAAA. Check out the memory dump and notice where our input is (hint: 0x2400). Notice that right after the 16th byte, the 17th byte will land in 0x2410. Although the password prompt says to use a password of length 8 to 16 characters, let's try using a 17-byte password and attempt a one-byte overflow into 0x2410 with 0xc7 and see if we can unlock the door...
